Product Details

X-Series Lift


Item Information

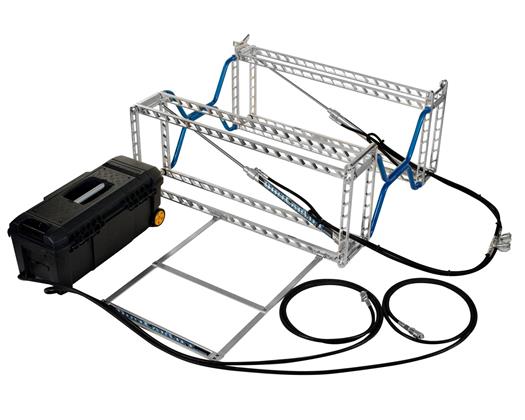

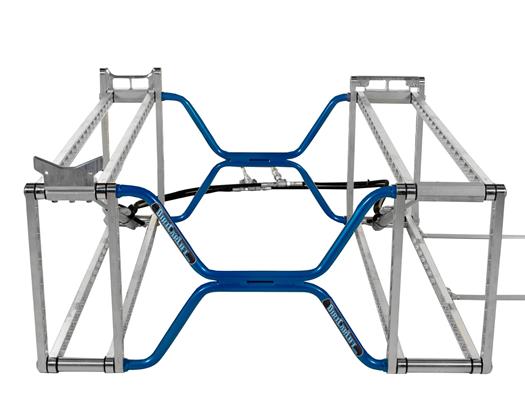

• CNC machined structure weighing just 64 lbs. with a 4,000 lb. lifting capacity
• Dual action, 12V 2300 PSI hydraulic pump with quick disconnect couplers and cylinders that work with power up/power down hydraulics
• 20" tall in rear and 18" tall in front with riser package to compensate for raised RF rail cars with self centering right side riser, 41" total side to side width
• Available (X Bar) colors: Red, Blue, Gloss Black, Safety Orange, Neon Yellow and Kawasaki Green
• Not compatible with wide frame metric cars, wide lifts are special order only (see image dimensions)
• Battery and fluid NOT INCLUDED, fluid available for additional charge
• Kryptonite, Trackstar and CVR cars (MUST BE SPECIAL ORDERED)

You must use a minimum 12 Volt/350 CCA battery, the pump reservoir will hold 3-4 quarts of fluid and you must use an AW-32 hydraulic oil
to operate your lift
